| Place of Origin: | China |
|---|---|
| ब्रांड नाम: | meidibao |
| प्रमाणन: | CE |
| Model Number: | KF115-MS01I |
| दस्तावेज़: | उत्पाद पुस्तिका पीडीएफ |
| Minimum Order Quantity: | 6 unit |
| मूल्य: | 530~580 USD |
| Packaging Details: | PLT |
| Delivery Time: | 30~40days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets |
| Power supply: | 1/220V/60Hz or 50Hz | Compressor: | rotary |
|---|---|---|---|
| Air side heat exchanger: | finned radiator | Maximum hot water temperature: | 60℃ |
| Rated cold water temperature: | 12℃ |

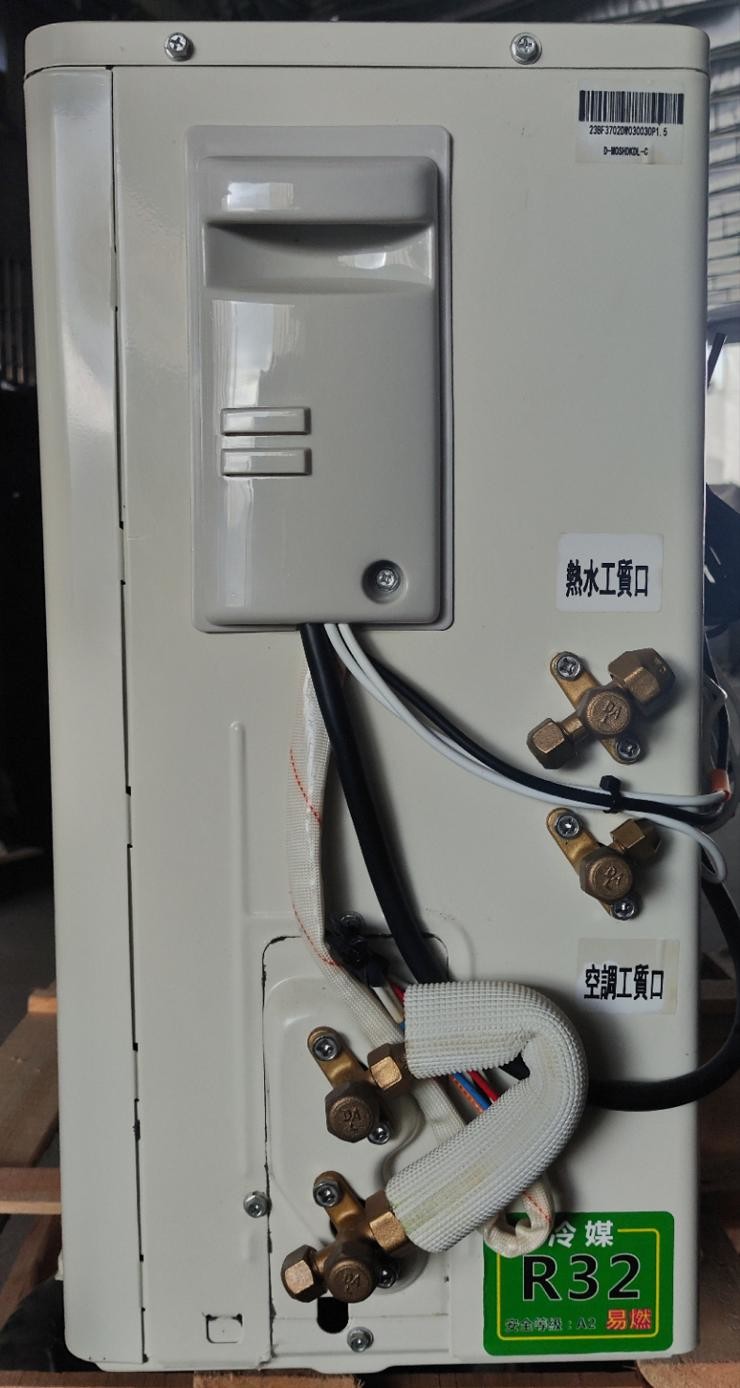

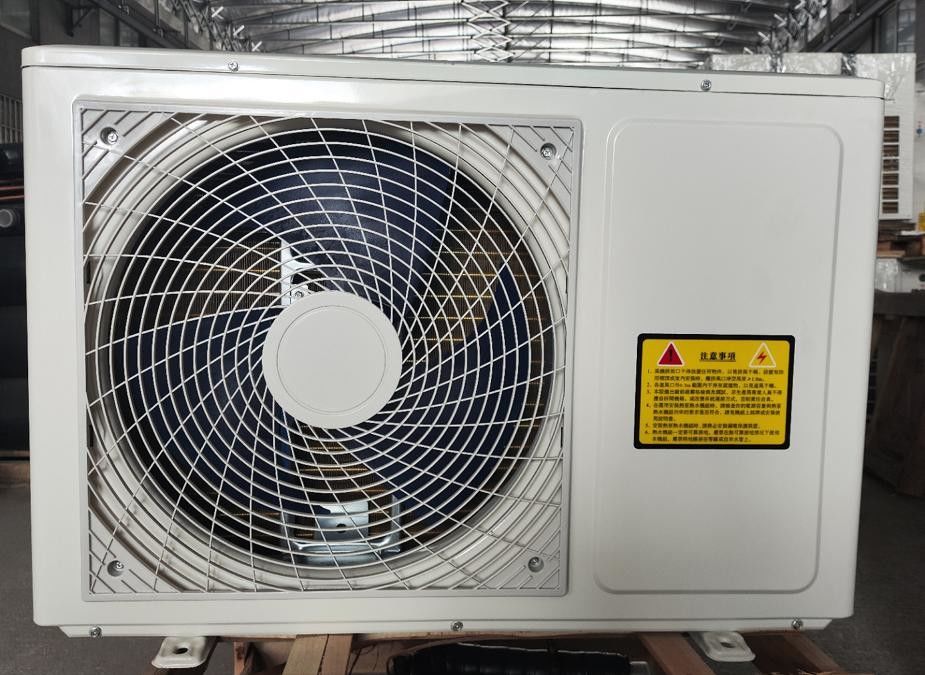

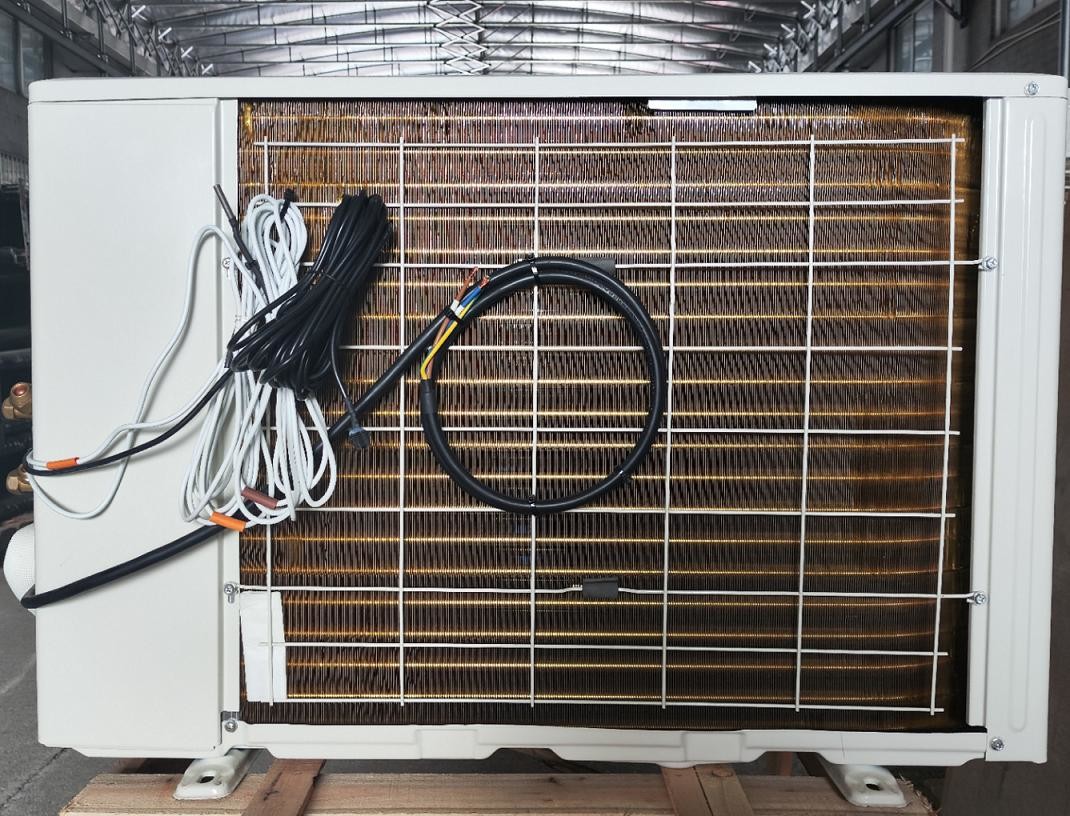

Multi-functional heat pumps systems designed to provide multiple heating and cooling services
Product Description:
Guangdong Foshan Meidibao Electrical Appliance Co.,Ltd was established in 2005. As a professional manufacturer of heat pumps,it is also a original equipment manufacturer for non-standard customized solutions for Industry Peers.In 2009, the multi-functional heat pump was successfully developed and marketed. After extensive market verification, the product quality has remained stable, and the technology has become increasingly mature.
Feature:
In the spring,summerand autumn seasons of the year,the heating cost when using the indoor unit is equal to“zero”.
the world's most advanced green,environmentallly friendly,safe and energy-saving water heater.
Heat pumps obtain solar energy from the air and use the compressor to move the heat energy in the air. Therefore,
when consuming the same amount of electricity, they can move more than 4 times the amount of heat generated by
electric water heaters. In addition, heat pumps are completely unaffected by climate change or bad weather, which
makes up for the defect that ordinary solar water heaters are affected by weather and cannot guarantee the supply
of hot water 365 days a year.
Specification:
| Model | KF115-MS01I |
| Power supply | 220V~/50Hz |
| Rated heating capacity | 6.3kW |
| Rated power | 1.8kW |
| Rated cooling capacity | 3.74kW |
| Rated power | 1.7kW |
| Hot water production capacity | 135L/h |
| Maximum input power | 2.21kW |
| Maximum input current | 10A |
| Refrigerant/Charge quantity | R410A/1000g |
| Maximum working pressure of exhaust | 4.2MPa |
| Minimum suction working pressure | 0.15MPa |
| Rated hot water temperature | 55℃ |
| Maximum hot water temperature | 60℃ |
| Rated cold water temperature | 12℃ |
| Pressure range of water system | 0.1~0.8MPa |
| Compressor | GMCC/rotary |
| Air side heat exchanger | finned radiator |
| Refrigerant connection | 6.35/9.52 |
| Water connection | DN20 |
| Noise | ≤58dB(A) |
| Anti-electric shock protection | I |
| Protection grade | IPX4 |
| Net weight | 58kg |
| Gross weight | 66kg |
| Net dimension | 954×3240×560mm |
| Packing dimension | 1100×420×625mm |
| Testing condition: ambient Dry/Wet bulb Temp:20℃/15℃；Water Inlet OutletTemp:15℃/55℃ | |
Advantages:
The main unit and the thermos can be installed separately as a single hot water device; the main unit can also be installed with the indoor unit for dual-purpose air conditioning; you can also choose three-in-one, the main unit, the thermos and the indoor unit, so that you can enjoy hot water while also blowing air conditioning or heating at the same time. In addition, the
three-in-one heat pump system has simple installation conditions and can be adapted to the consumer's living environment to save space.
